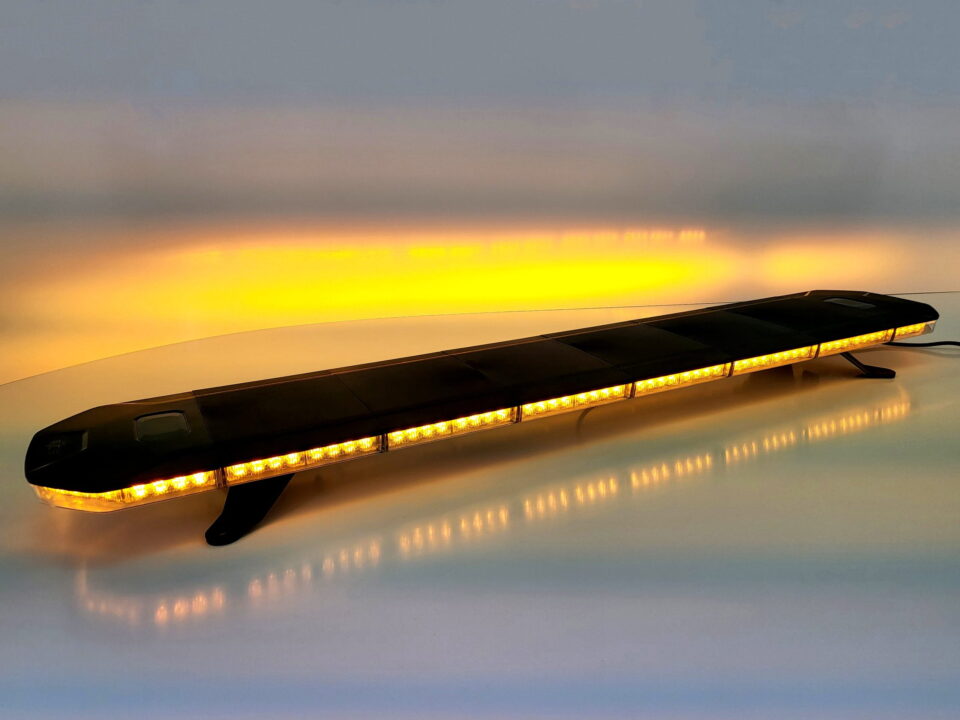

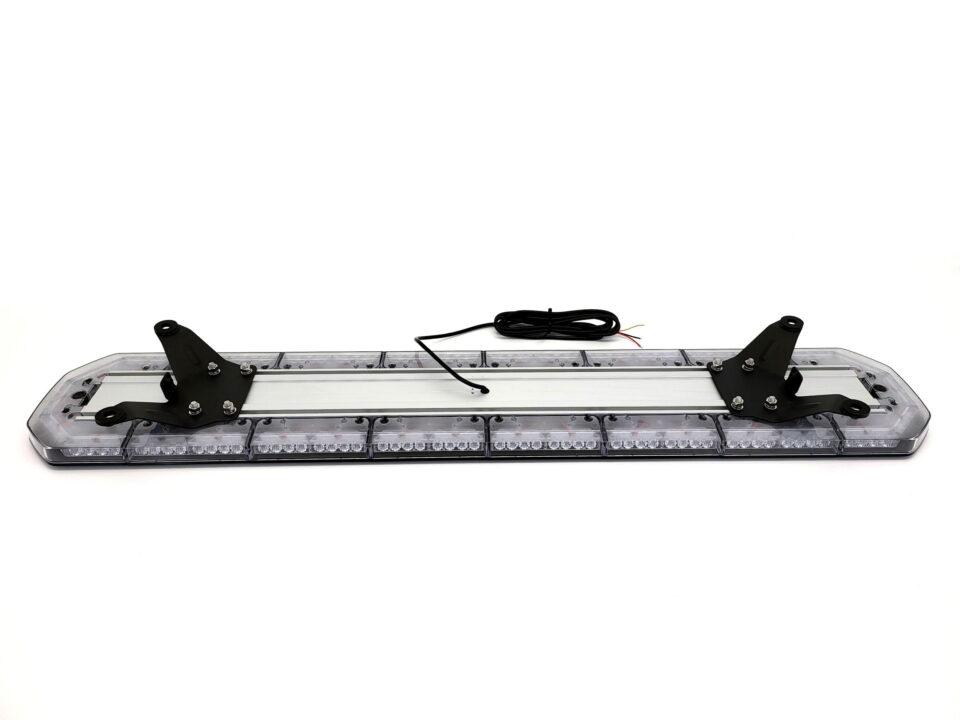

FleetMax™ SlimLine LED Lightbars With Stop, Tail & Indicators – 12/24v – ECE R65 – 1220mm ~ 1524mm

Our FleetMax Lightbars are now available in 1220mm and 1524mm  lengths with built-in stop (brake), tail and indicators. We also stock standard versions without STI lights available in 8 different lengths, search FLEETMAX LIGHTBAR.

They simple to install, straight forward to control, completed with high intensity warning light output.

Manufactured to ECE R10, & R65 Class 2 approved performance backed by a 2 year no hassle warranty.

Constructed of super strong polycarbonate plastics which makes the lens near impossible to crack or smash ensuring great reliability in the harshest environments.

Simple 3 wire connection: Positive, Negative, Flash Pattern which can be wired to your own switch or you can purchase one of two different types of controllers. There are a further 5 wires that are to be connected to your vehicles rear lighting clusters or trailer wiring relay to control the stop, tail and indicators inside the light bar.

Main Features:

– Multi voltage 12/24Vdc | 10-30Vdc

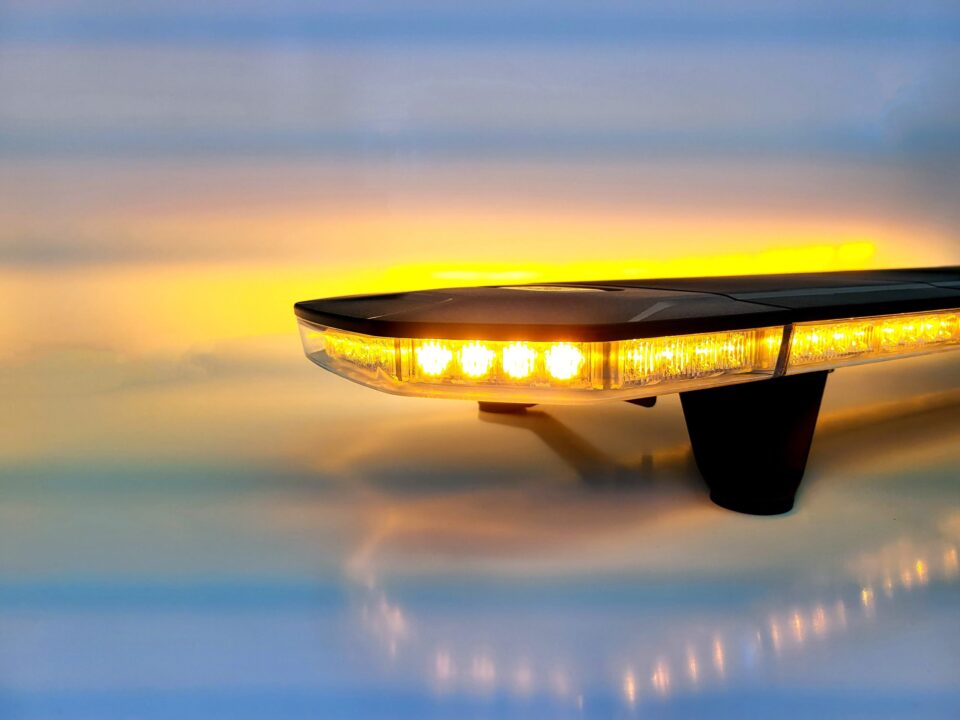

– STI Stop, Tail, Indicator function
– Slimline body at only 37mm high, 220mm Wide
– 4-LED TIR module optics for superior directional light output
– 14 Selectable flash patterns
– Traffic director modes
– ECE R65 Class 1 & 2
– CAP168 60 FMP airport pattern

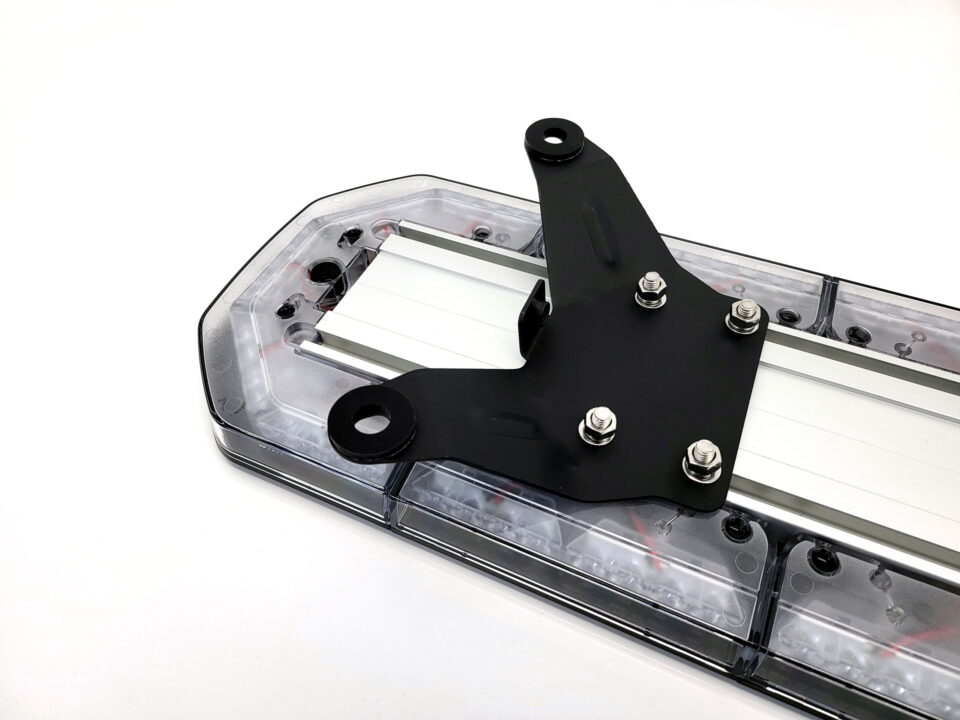

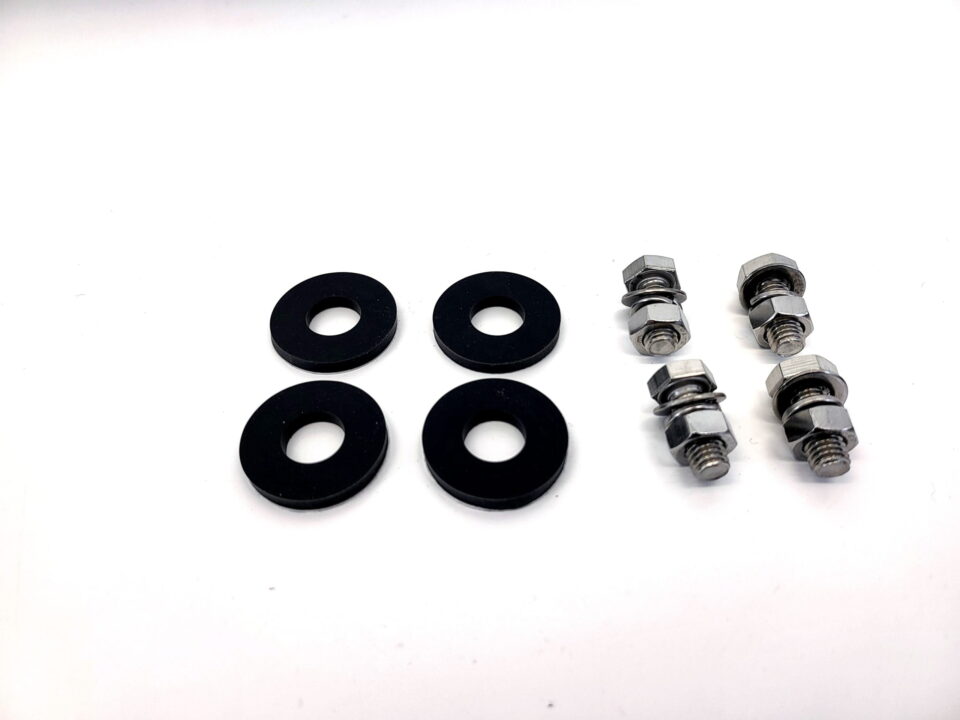

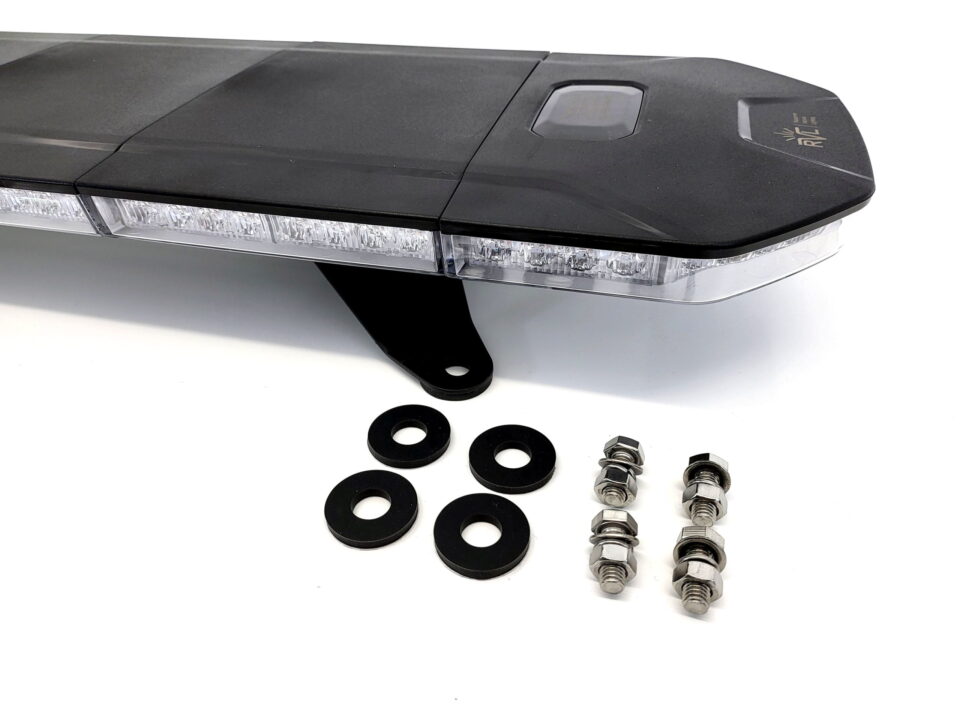

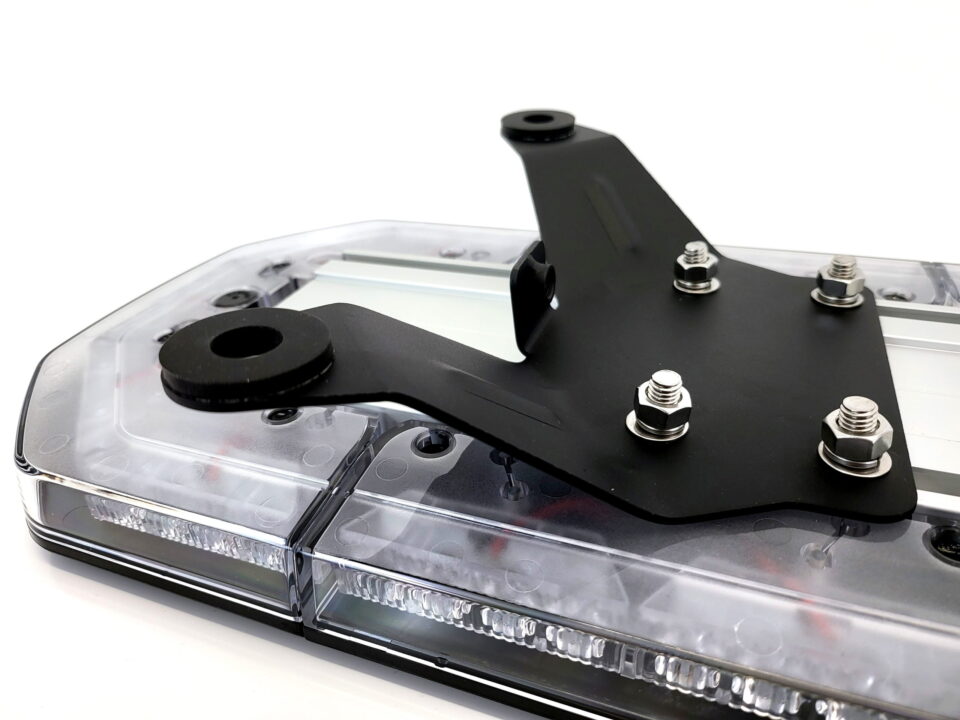

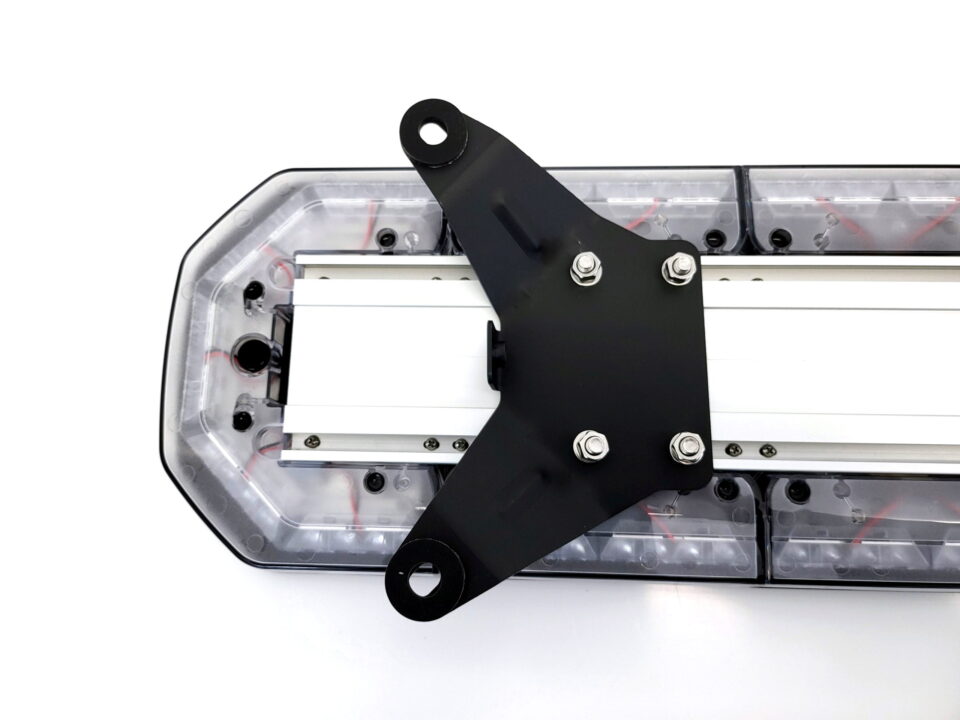

– Mounting type: Bolt/Bracket
– 3 Metres of cable

Control Options:

As standard the lightbar is suppled with 3 metres of cable that can be connected to your own switch. We also have two controllers available;

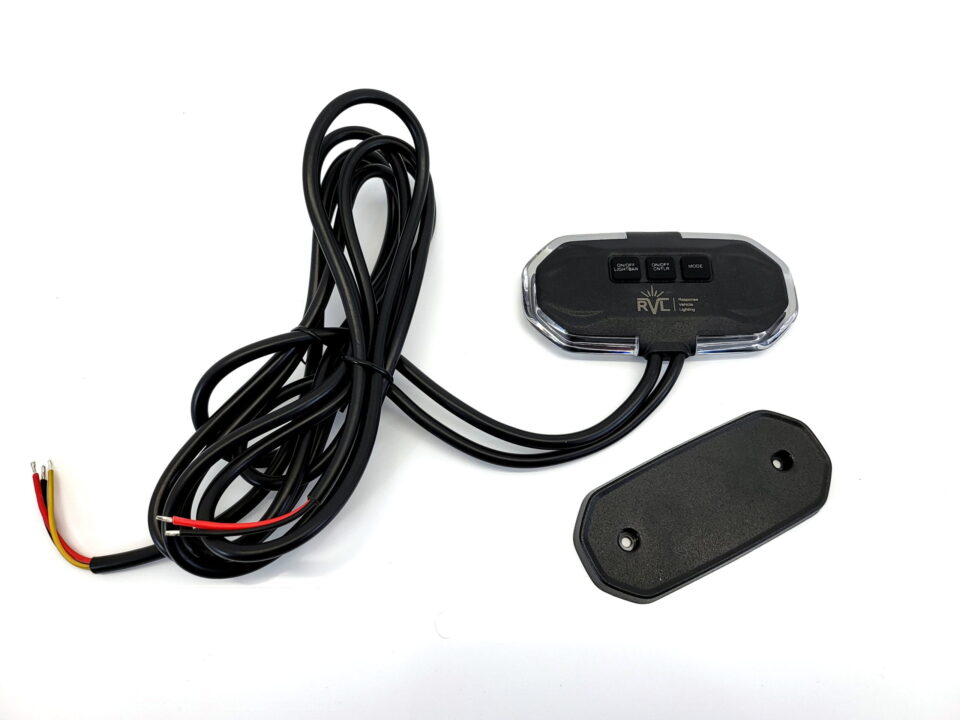

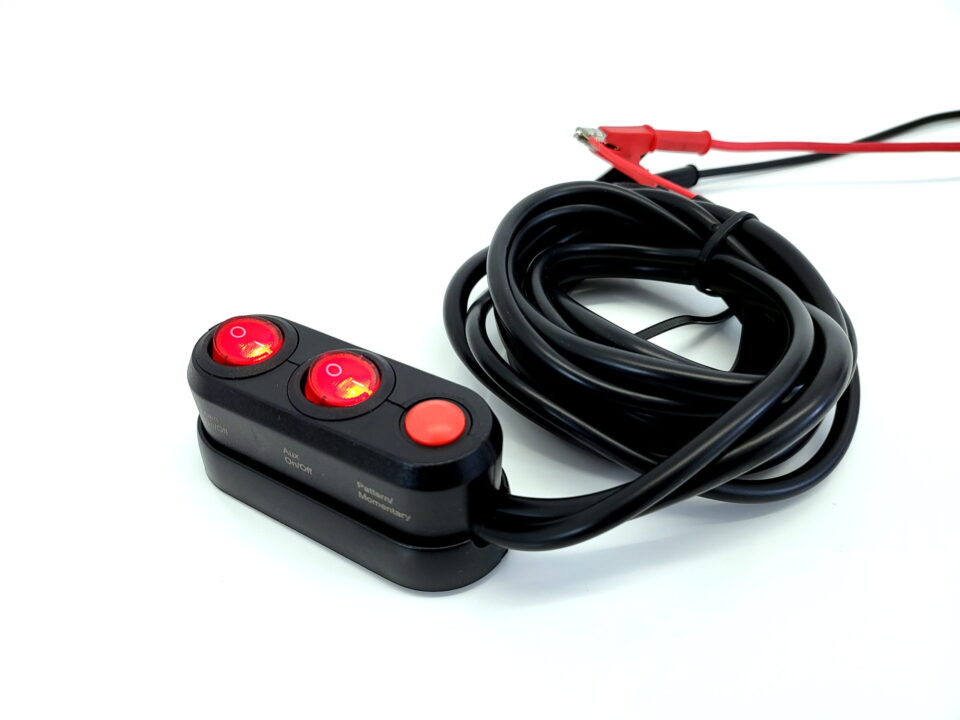

Option 1 – Universal Switch Pad for Vehicle Lighting
– 1 lightbar on/off switch, 1 Aux spare on/off switch (supports other 12/24v devices up to 10amp) and 1 flashing pattern select
– Simple to install, positive & negative input, 3 Positive outputs (1 for each switch), negative output, connect to the lightbar directly.
– Supplied with 1.5 metre of input and output cables.
– Mounting: Supplied with mounting back plate that can be screwed or glued to a surface. The controller is attached to the back plate by being pushed and clicked in place.

Option 2 – Digital Controller Switch Pad for FleetMax™ LED Lightbars
– Stylish, shaped as a lightbar itself, replicates the current flashing pattern.
– Switches include lightbar on/off, flashing pattern select & digital display on/off switch.
– Easy to switch between the traffic director mode patterns and flashing patterns.
– Simple to install, positive & negative input. Positive & negative output plus yellow wire that connect directly to the lightbar.
– Supplied with 1.5 metre of input and output cables.
– Mounting: Supplied with mounting back plate that can be screwed or glued to a surface. The controller is attached to the back plate by a magnet. The back plate can be removed and the controller be glued directly to the mounting surface.

Lightbar Dimensions:

Lengths available;

1220mm/ 4ft
1524mm/ 5ft

Width:
220mm / 8.6 inch Wide

Height:
37mm / 1.45 inch

Height Including brackets:
81mm / 3.2 inch

Approvals:

– E9
– ECE EMC R10
– ECE R65 Class 1 & 2
– CISPR 25 Class 3
– IP67

Warranty:

2 Years manufacturer warranty

Part Number:

FLEETMAX-1220A-C-STI
FLEETMAX-1524-A-C-STI
