MicroMax Lightbar – Standard – Single Main Colour – Limited Functions & Wire Only – 800mm ~ 1800mm

MicroMax™ Standard Edition

Great value and performance with simple control and features.

• 3 or 4 core wire connection: Positive, negative, flash pattern change, centre sign illumination.
• Fully populated with LED modules in all sections of the lightbar for superior warning power

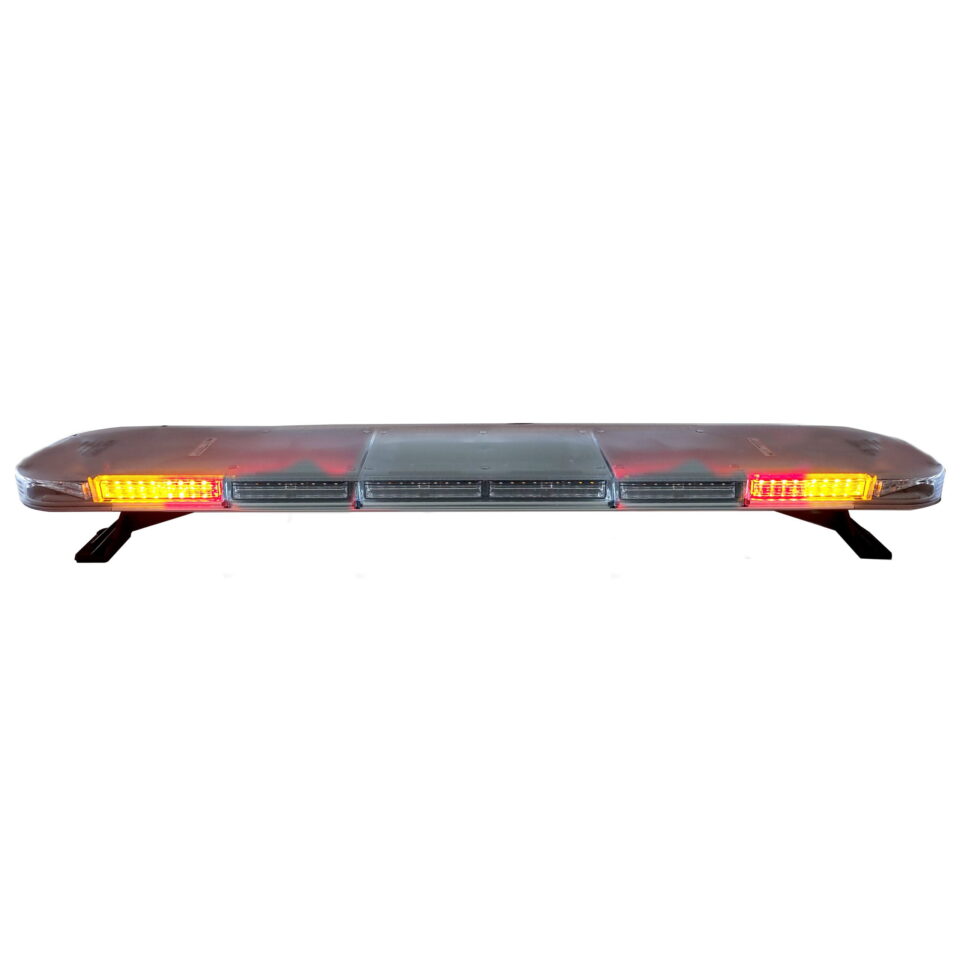

• Optional Stop, Tail & Indicator function, connect to your vehicle via the supplied 6 core cable.
• Optional Centre sign illumination which choice of text, company name or logo.
• ECE Regulation 65 approval is fully loaded with high intensity LEDs within wide angle linear lenses to create superior, off-axis visual warning at any angle.
• Strong polycarbonate lenses mounted on top of an aluminium base. Supplied with four bolts and mounting kit.
• The flashing pattern speed has been updated on alternating patterns compared to previous OpticMax models.

Climate Control

• LED modules are sealed in their own environment to prevent any condensation or natural elements from reaching the PCB or LEDs. For extra protection they are manufactured with waterproof connectors to ensure maximum protection
• The lightbar now benefit from air flow vents (rather than pads or valves on previous models) that have been developed to greater increase air flow internally reducing condensation build up in certain climates.
• Designed with removable lenses attached to the base using stainless steel screws on top of the lens for quick easy access to the internals should you wish to change LED modules and to add or remove functions.

Main Features:

– Multi voltage 10-30Vdc (12/24Vdc)
– ECE R65 Class 1 approved
– Wide angle linear lens technology
– High intensity 3W & 1.5W LEDs
– Heavy duty aluminium base & strong polycarbonate lenses
– 20 User selectable flash patterns
– Mounting type: 4 Bolt
– Mounting brackets
– 3 Meters of cable

Control Features:

– Positive, Negative, Flash Pattern, Centre Sign Illumination (if specified)
– 6 core cable is supplied with the Stop, Tail & Indicator version (if specified)
– 3 metre in length

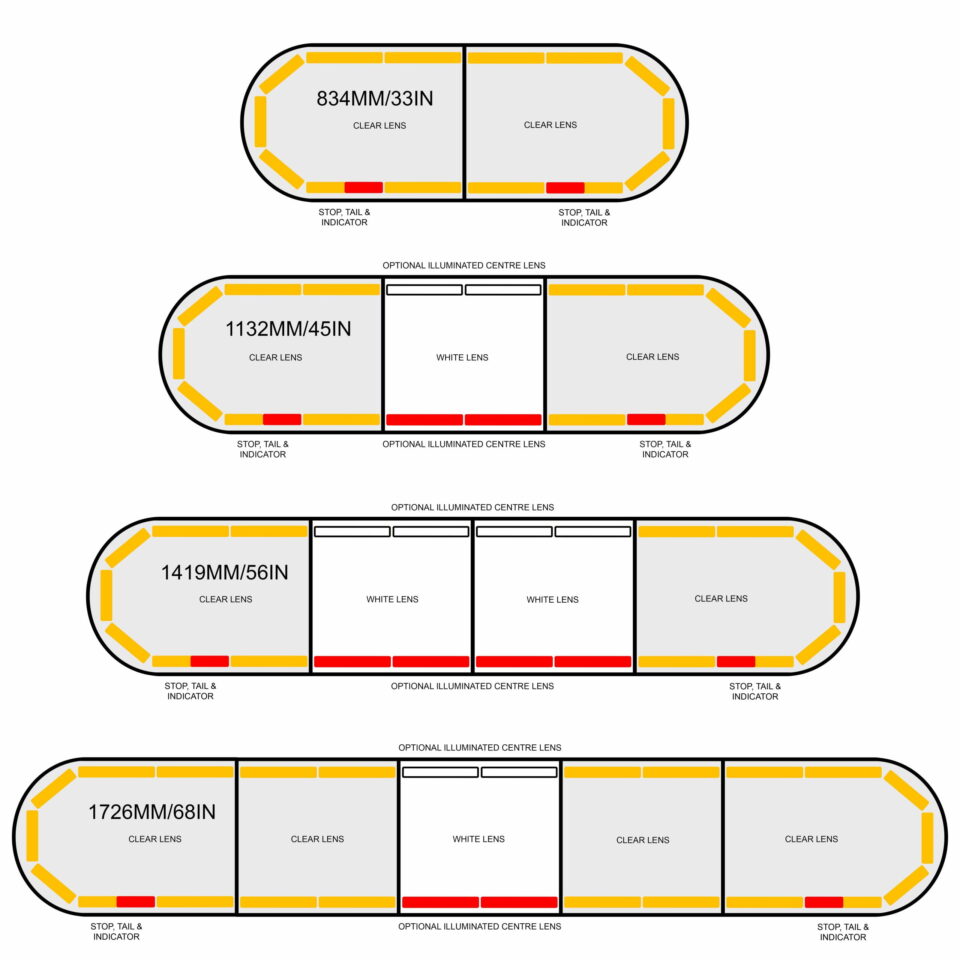

Optional Lighting Functions:

– Stop, tail and indicators
– White centre sign & illuminated

Mounting Options:

– Low profile brackets
– High profile brackets
– Roof clamps (high profile brackets required)

Dimensions in mm:

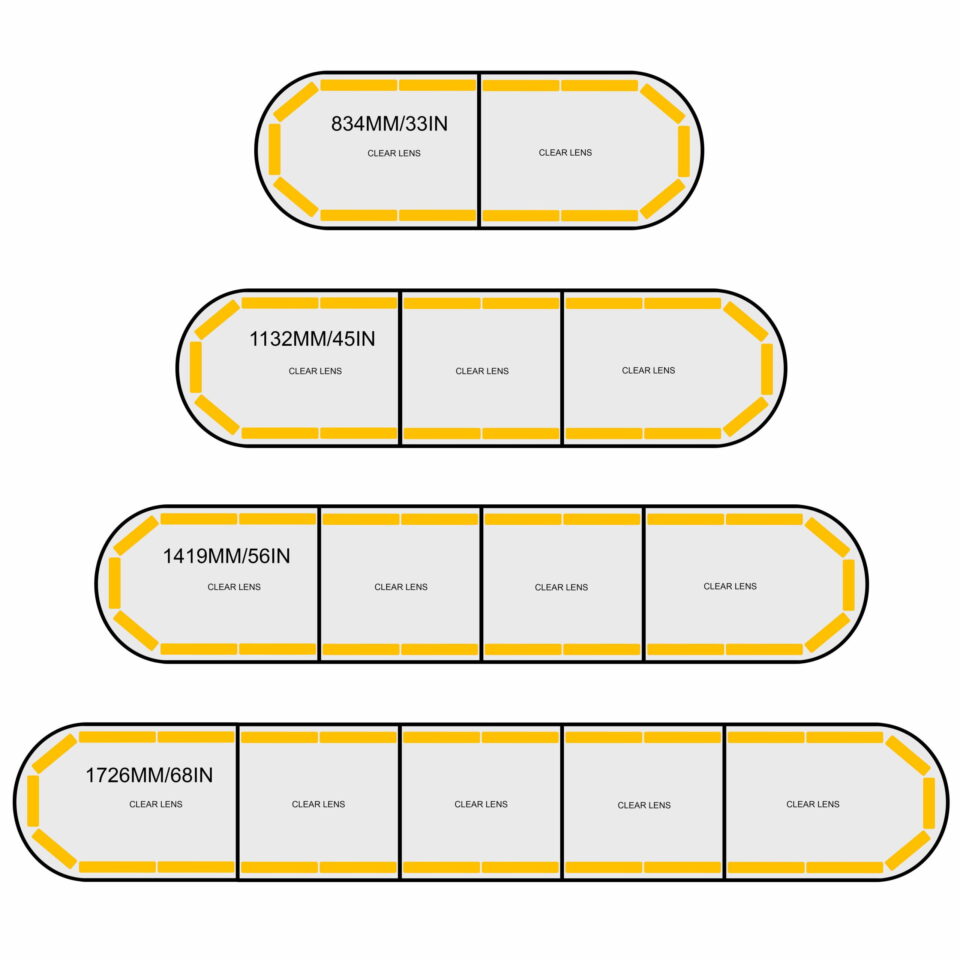

Lengths: 834mm, 1132mm, 1429mm, 1726mm
Height: 40mm (lightbar), 70mm (low profile brackets),  105mm (high profile brackets)
Width: 210mm

Approvals:

– E9
– ECE EMC R10
– ECE R65 Class 1
– IP67

Warranty:

3 Years manufacturer warranty

Part Number:

MICROMAX800-STANDARD
MICROMAX1200-STANDARD
MICROMAX1400-STANDARD
MICROMAX1700-STANDARD
