RVL – SQ4 Grill / Directional LED Light – 12/24 v – ECE R65 – Amber, Blue, Red, White

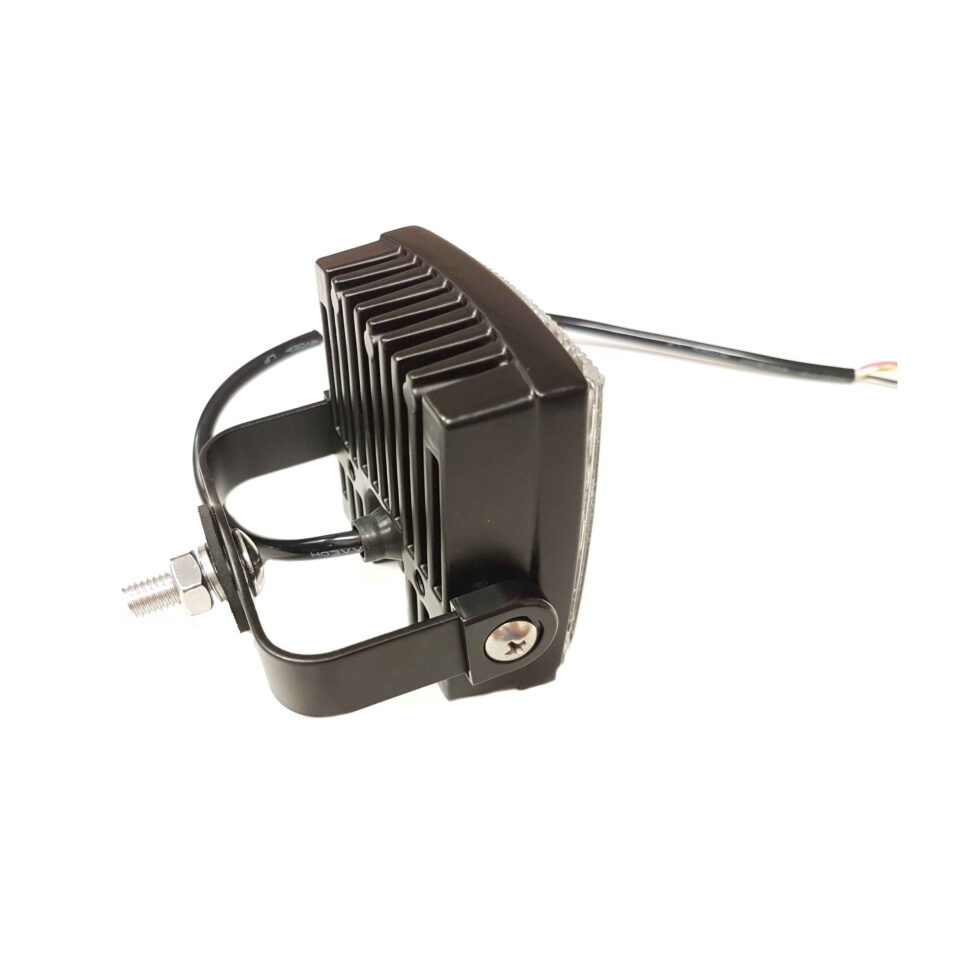

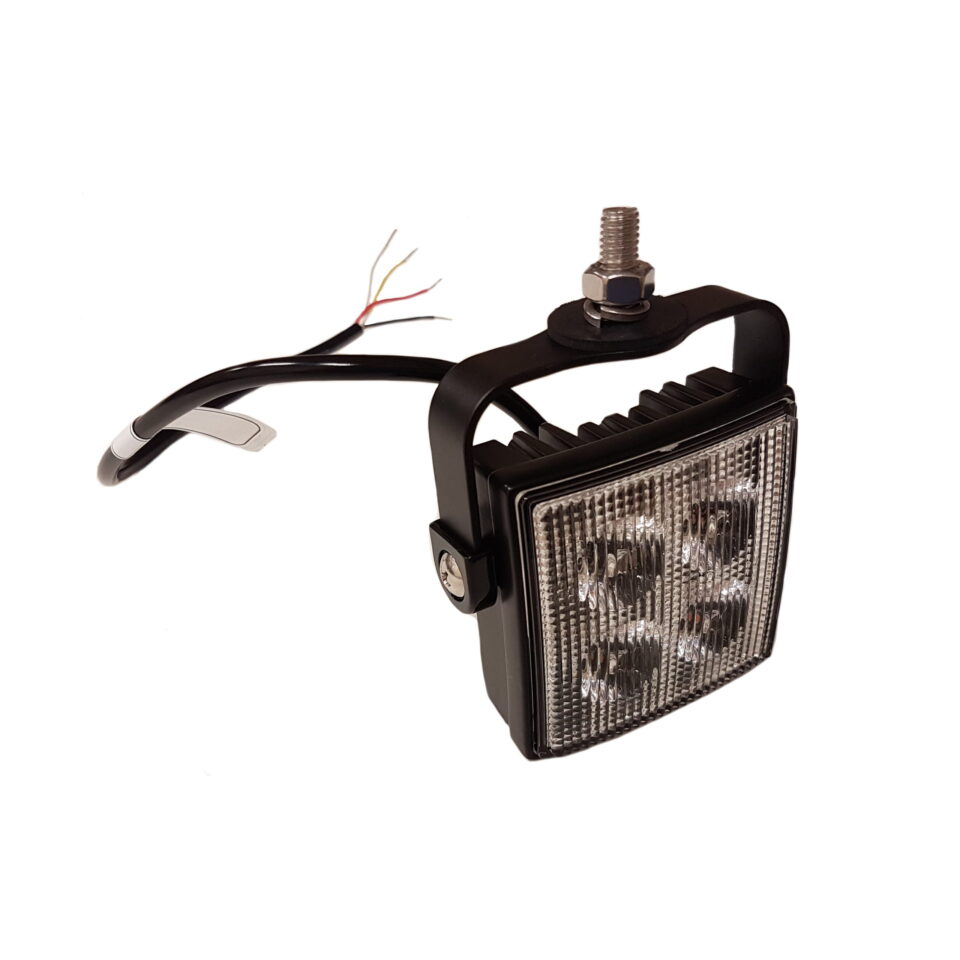

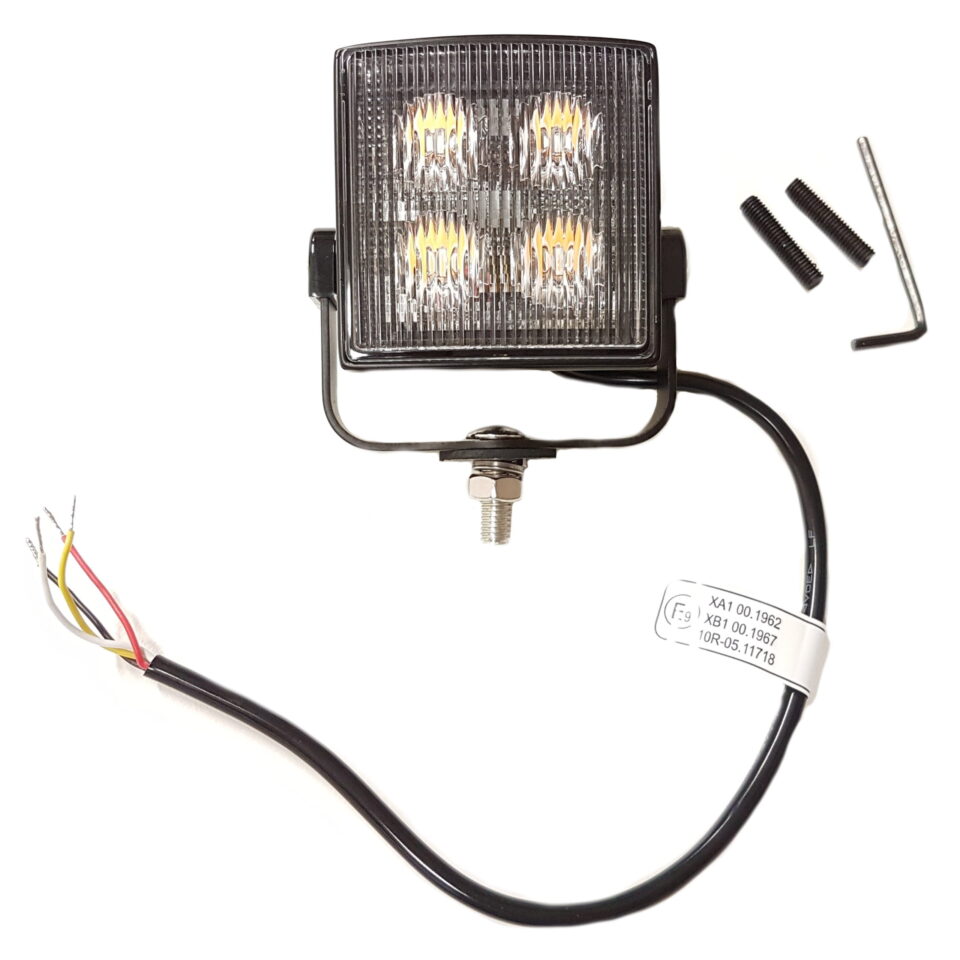

The SQ4 Lighthead integrates four high power 3rd generation LEDs in a robust aluminium housing along with an adjustable bracket for maximum versatility.

Each LED unit utilizes four 3 Watt LEDs which supersedes most LED modules on the market, they sure do pack a punch!

Constructed from Aluminium and super strong Polycarbonate for the lens.

Main Features:

– Dual voltage 12/24Vdc
– ECE R65 & R10 Approved
– Long life LED technology
– 4 x 3 Watt LEDs
– 15 User selectable flash patterns
– Multiple units can link for synchronised, alternating and split flash patterns*
– Memory to remember last selected flash pattern
– Average current 0.33A @ 12V
– Fixing type: 1 or 2 point

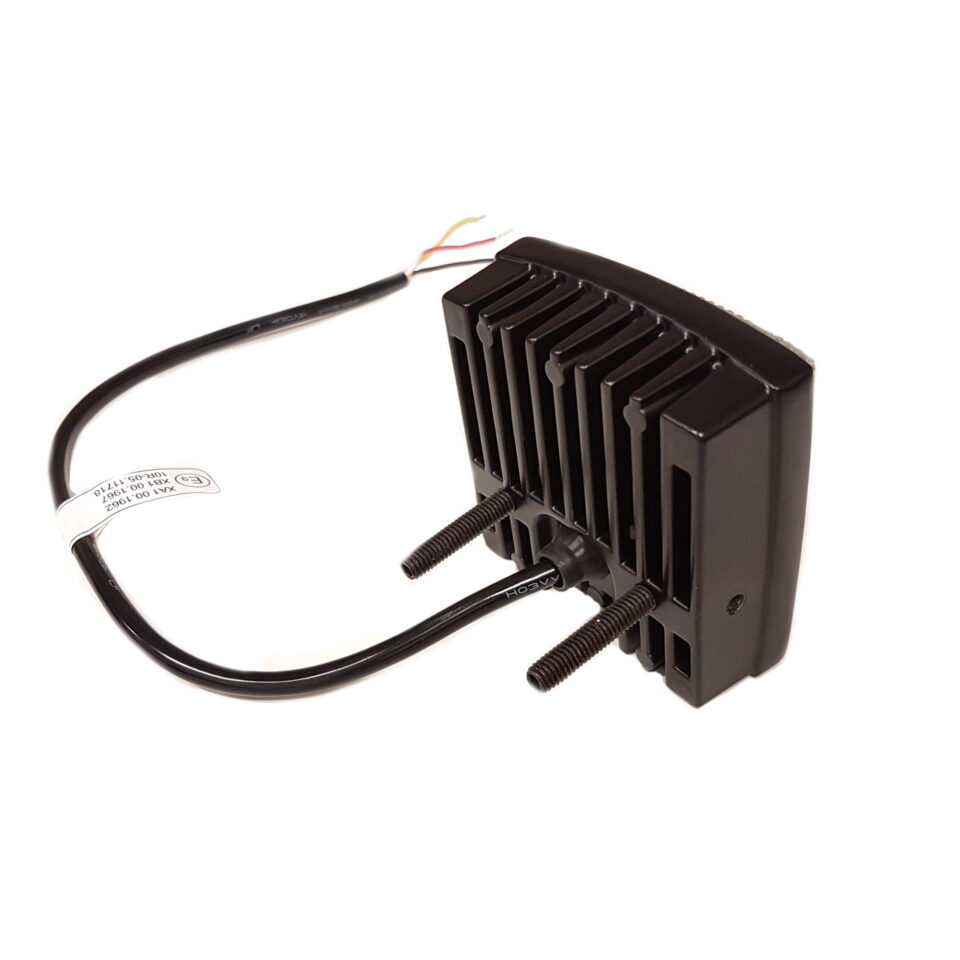

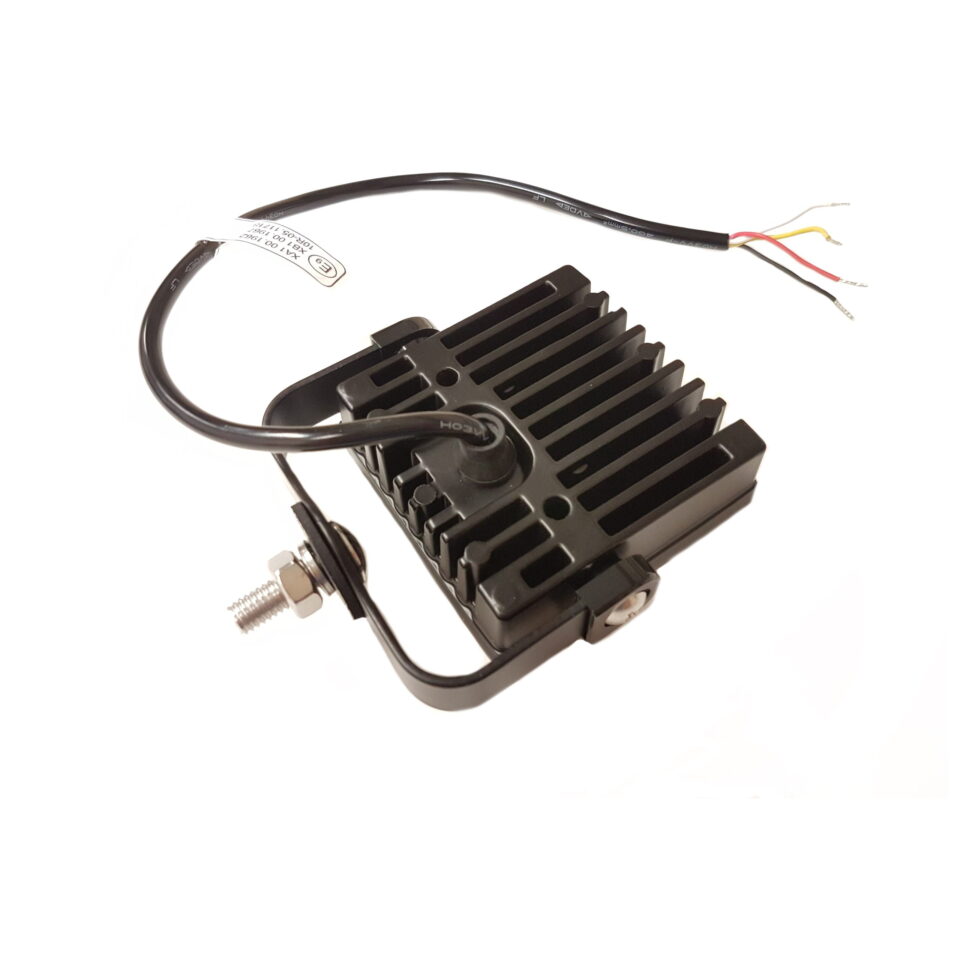

– Mounting type: bracket/surface
– 200mm of 4 core cable

Sync group: B
(sync groups are product lines that will sync together, check sync group filter on product category for more products)
Sync group B information;
*2 modules will sync for alternating, simultaneous, or split flash patterns
*3 or more modules will sync for simultaneous or split flash patterns only

Dimensions in mm:

– 74 L x 32 W x 74 H / 90 H with bracket

Approvals:

– E9
– ECE EMC R10
– ECE R65
– IP67

Warranty:

2 Years manufacturer warranty

Part Number:

SQ4LED
